The Breathing Manifesto: Inside Studio Tathya’s Tactile Sanctuary

Ar. Nayan Jain, Ar. Shreyansh Sankhla

In the dense, rhythmic chaos of an evolving Indian city, an architect’s own office often serves as a silent manifesto, a physical distillation of a firm’s philosophy. For Studio Tathya, their self-designed headquarters in Raipur is a masterclass in transforming "urban density" into "spatial soul."

Situated on a compact 33’ × 50’ plot within a mixed-use neighborhood, the building, completed in 2022, is a profound exploration of how vernacular wisdom, parametric precision, and local materiality can coexist.

Climatic Choreography: The South-West Shield

The design process began with a deep reading of the site’s constraints. Exposed to the intense afternoon heat of Chhattisgarh, the south-west frontage demanded a defensive posture. The architects responded with a stoic face of exposed brick, utilizing its thermal mass to reflect the sun’s bite.

In a poetic contrast, the north-east elevation was designed to breathe. Expansion through larger glazed areas and operable louvers invites soft, filtered daylight and prevailing winds into the heart of the workspace, significantly reducing reliance on mechanical cooling.

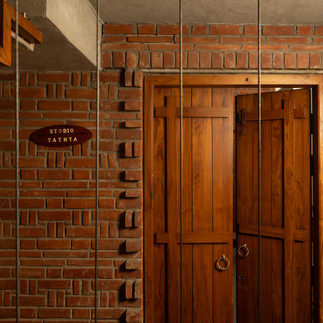

The Threshold: A Sensory Transition

The entry sequence is a deliberate departure from the active street outside. Visitors are greeted by a shallow water body featuring stepping stones and a soft fountain. This is not merely an aesthetic choice; it is a microclimatic engine. The water acts as a natural heat sink, cooling the air before it enters the volume, signaling a transition from the urban heat to a sanctuary of focused creativity.

The Heart: A Parametric Lung

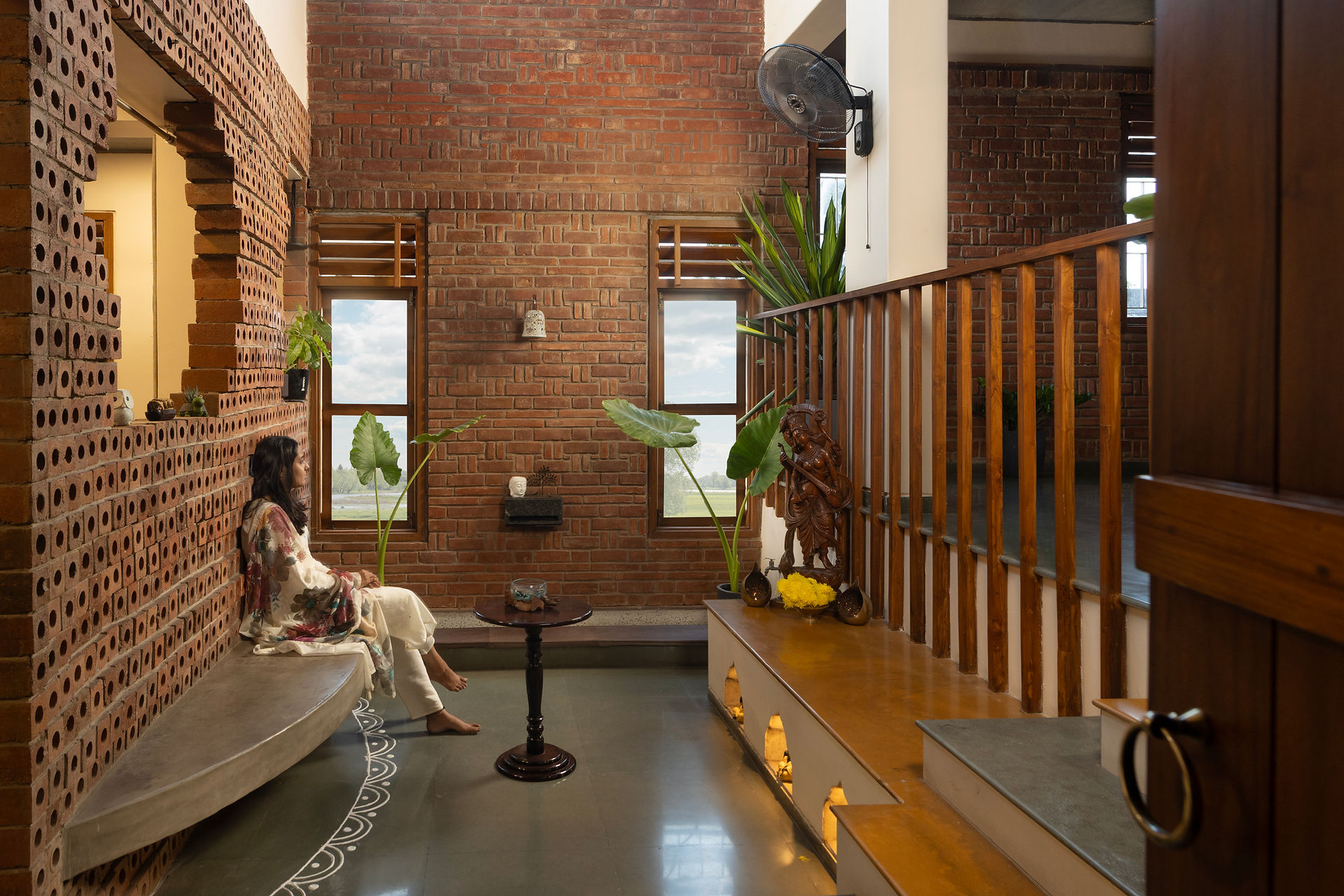

Stepping inside, the volume expands into a double-height waiting area. The protagonist here is the parametric brick partition wall, a semi-permeable divider that balances privacy with porosity.

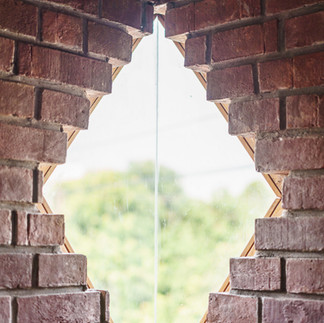

This element doesn't just define the public and private zones; it facilitates a vertical "stack effect," allowing the building to breathe. The execution of this wall, along with the intricate brick jaalis, required extreme precision and skilled labor, proving that high-design can be achieved through traditional masonry.

The Workspace: Craft & Connectivity

The studio's interior rejects the "sanitized" nature of minimalist design in favor of intentional vibrancy and tactile honesty:

• The Ceiling: In the Principal Architect’s zone, the exposed concrete ceiling features an intricate, star-like geometric pattern, achieved by casting the slab with custom-cut MDF inserts.

• The Floor: A rhythmic interplay of polished and raw Kota stone anchors the space, accented by the warmth of Jaisalmer stone.

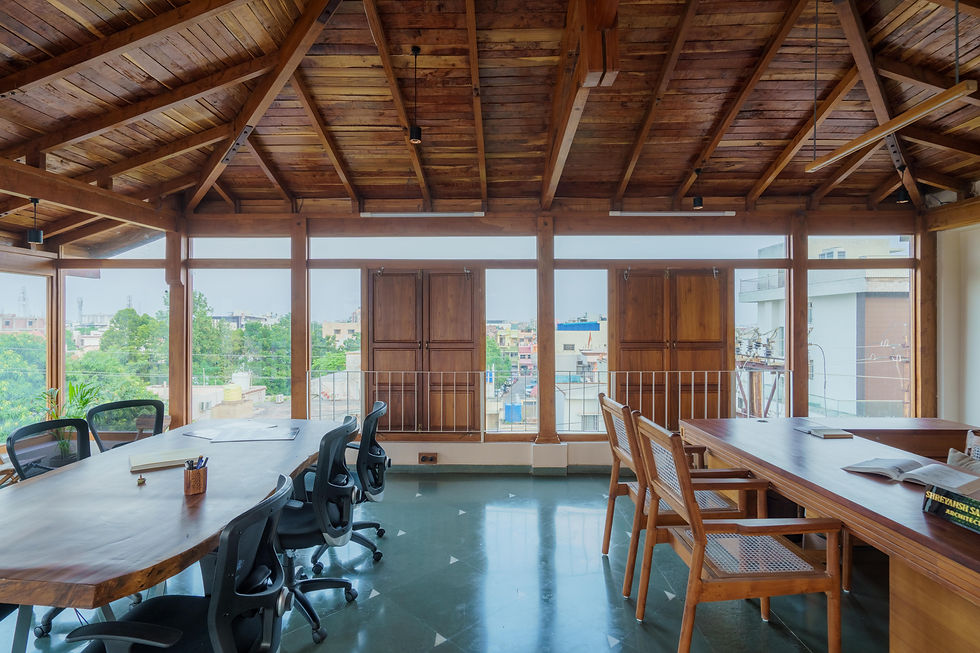

• The Structure: A magnificent teakwood scissor truss supports the roof over the mezzanine conference area, serving as both a structural necessity and a thermal buffer.

• The Furniture: Pieces crafted by local artisans using teakwood and rattan provide a soft counterpoint to the ruggedness of the brick and stone.


Execution & Hierarchy

The spatial organization utilizes level differences rather than rigid walls. The Principal Architect’s desk is slightly elevated, establishing a subtle hierarchy while maintaining total transparency. The mezzanine-level conference space overlooks the central volume, ensuring that the "process of design" is visible from every corner.

From the cantilevered staircase, a feat of engineering coordination, to the hand-laid brick details, the Studio Tathya Office Building stands as a testament to the beauty of the "exposed." It is a space that doesn't just house architects; it inspires them.

FACT FILE:

• Project Name: Studio Tathya Office Building

• Architectural Firm: Studio Tathya

• Principal Architects: Ar. Nayan Jain, Ar. Shreyansh Sankhla

• Location: Raipur, Chhattisgarh

• Area: 3300 sq.ft.

• Year of Completion: 2022

• Design Team: Omkar Dewangan, Disha Karanjawala, Tanishka Baid, Ashish Jadwani.
